Optical Fibre Path Delay Line
AFW can manufacture compact size, robust fibre delay lines to suit your space and budget. You no longer require large fibre spools with connectorised fibre pigtails. We can make customised fibre lengths to suit your application. Suitable for optical network testing and analysis, fibre laser and time delay applications.
Note: Box measurements are approximate only.
Packaging: Different packaging options are available based on the lengths selected.

-  Insertion loss 0.3 ~ 0.5dB per km
-  Customised fibre lengths: 50m,  100m, 200m,
   1km, 2km, 5km, 10km, 20km, 30km, 40km and 50km
-  Operating wavelength range: 1260 ~ 1650nm standard
-  Fibre type: G.652.D SMF



Optical Fibre  Spools

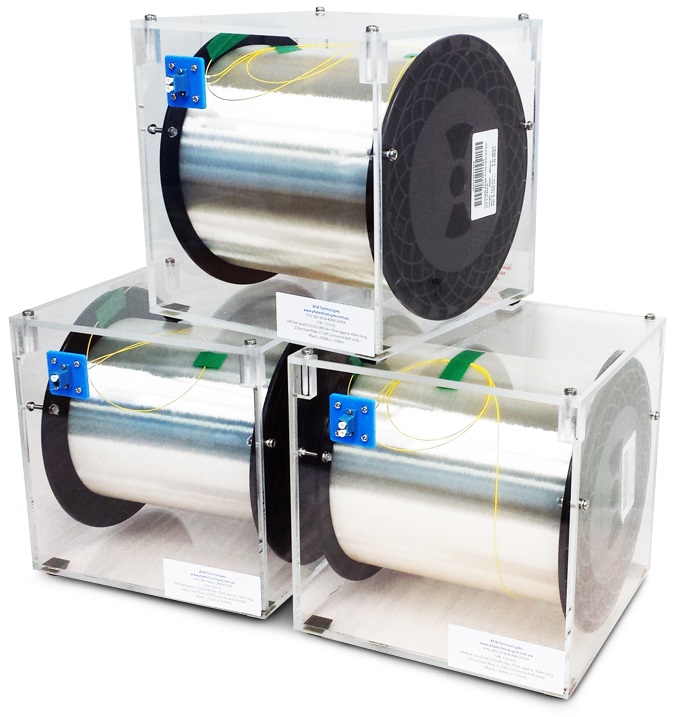

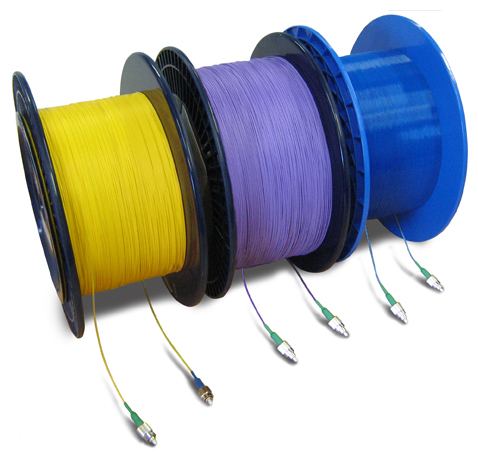

AFW can supply SMF28e bare optical fibre spools connectorised with FC/PC or FC/APC for recirculating loop for the testing of optical communications systems and devices. A span length varies from 50km, 80km and 100km. We can also integrate 1 to 4 fibre spools into an enclosure with various lengths.
See below sample products:
Ordering Examples
Part Number Description Pricing
SM1-22-B-50-BX Optical Fiber Delay Line, SMF28e+ fibre, 50m length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for output
Box size: 100(W)x140(D)x30mm(H)
USD185.00
SM1-22-B-100-BX Optical Fiber Delay Line, SMF28e+ fibre, 100m length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for outputt
Box size: 100(W)x140(D)x30mm(H)
USD185.00
SM1-22-B-1KM-BX Optical Fiber Delay Line, SMF28e+ fibre, 1km length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for output
Box size: 220(W)x140(D)x50mm(H)
USD325.00

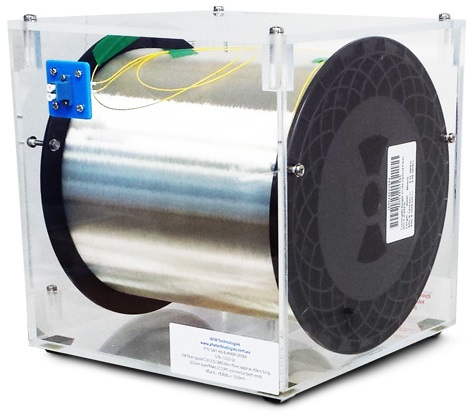

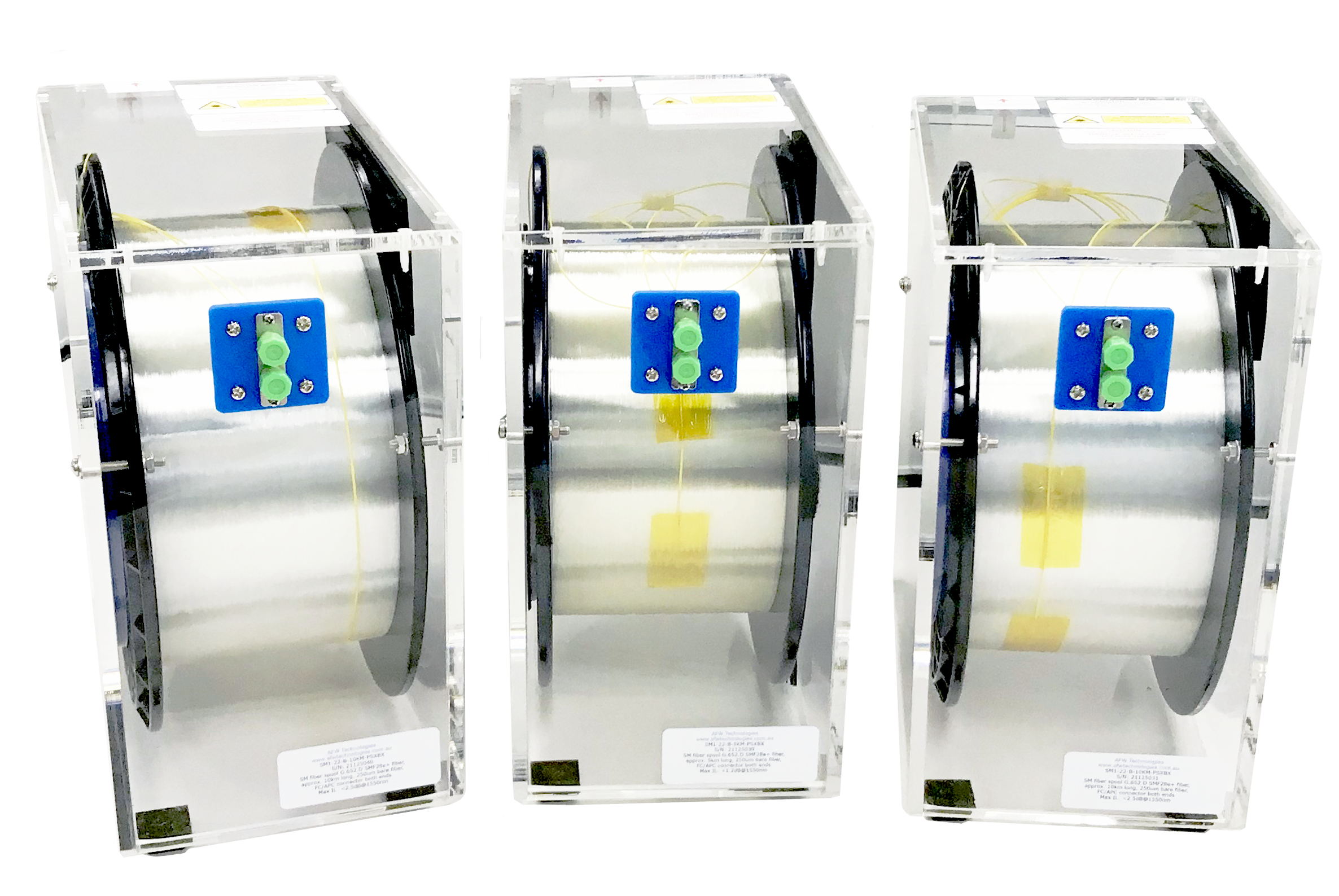

SM1-66-B-10KM-PSXBX SM fiber spool G.652.D SMF28e+ fiber, approx. 10km long, 250um bare fiber, LC/UPC connector both ends, both fiber ends 1m length fitted with 900um tubing with connector, Fiber spool fitted inside a clear Perspex enclosure, LC/UPC connectors front panel
Box size: 25(W)x25(D)x25cm(H)
Get a quote
SM1-66-B-15KM-PSXBX SM fiber spool G.652.D SMF28e+ fiber, approx. 15km long, 250um bare fiber, LC/UPC connector both ends, both fiber ends 1m length fitted with 900um tubing with connector, Fiber spool fitted inside a clear Perspex enclosure, LC/UPC connectors front panel
Box size: 25(W)x25(D)x25cm(H)
Get a quote
SM1-66-B-20KM-PSXBX SM fiber spool G.652.D SMF28e+ fiber, approx. 20km long, 250um bare fiber, LC/UPC connector both ends, both fiber ends 1m length fitted with 900um tubing with connector, Fiber spool fitted inside a clear Perspex enclosure, LC/UPC connectors front panel
Box size: 25(W)x25(D)x25cm(H)
Get a quote
SM1-66-B-40KM-PSXBX SM fiber spool G.652.D SMF28e+ fiber, approx. 40km long, 250um bare fiber, LC/UPC connector both ends, both fiber ends 1m length fitted with 900um tubing with connector, Fiber spool fitted inside a clear Perspex enclosure, LC/UPC connectors front panel
Box size: 25(W)x25(D)x25cm(H)
Get a quote

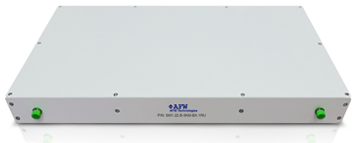

SM1-22-B-5KM-1RU Optical Fiber Delay Line, SMF28e+ fibre, approx. 5km length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for output, supplied in a 19inch 1U rack enclosure Get a quote
SM1-22-B-2KM-1RU Optical Fiber Delay Line, SMF28e+ fibre, approx. 2km length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for output, supplied in a 19inch 1U rack enclosure Get a quote

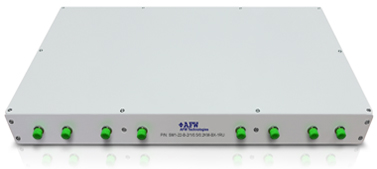

SM1-22-B-2/1/0.5/0.2KM-1RU Multiple Fiber Delay Lines, SMF28e+ fiber, 2km, 1km, 500m and 200m lengths, FC/APC connectors each end, eight FC-FC adapters on the front panel, one for input and one for output for each length, supplied in a 19inch 1U rack enclosure Get a quote
     P/N: SM1-22-B-1000-BX2
Size: 220(W)x140(D)x50mm(H)

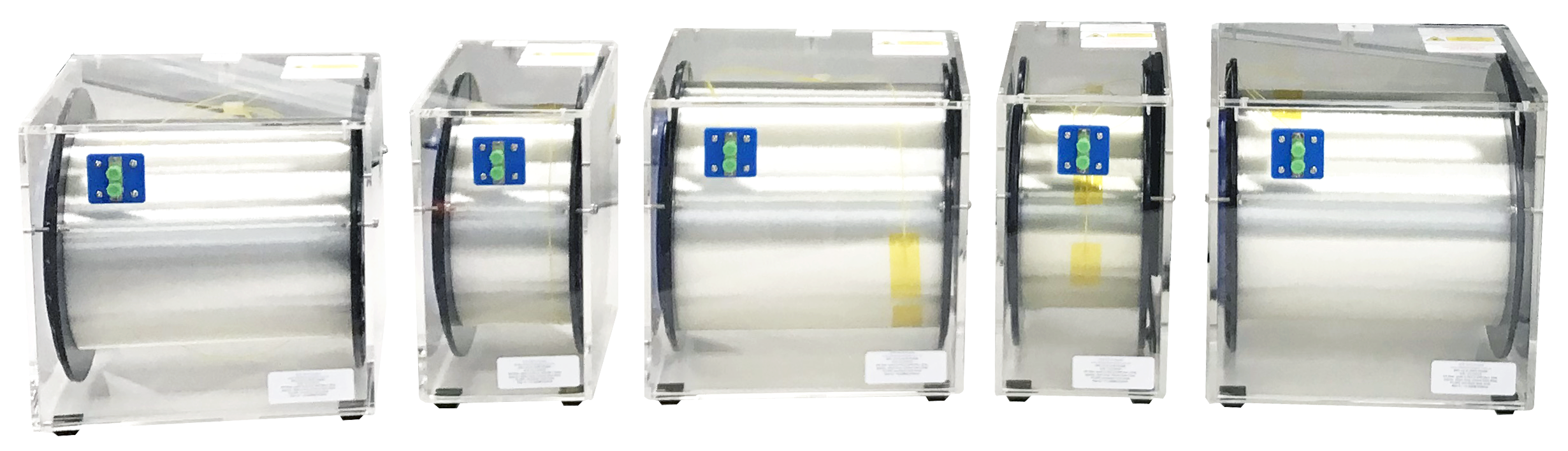

P/N: SM1-66-B-10KM-PSXBX
Size: 25(W)x25(D)x25cm(H)
       P/N: SM1-22-B-50-BX1
Size: 100(W)x140(D)x30mm(H)

     P/N: SM1-22-B-5KM-1RU
     P/N: SM1-22-B-2/1/0.5/0.2KM-1RU
Multiple Fiber Delay Lines, G.652.D SMF fiber, 2km, 1km, 500m and 200m lengths, FC/APC connectors each end, eight FC-FC adapters on the front panel, one for input and one for output for each length, supplied in a 19inch 1U rack enclosure
Optical Fiber Delay Line, G.652.D SMF , approx. 5000m length, FC/APC connectors each end, two FC-FC adapters on the front panel, one for input and one for output, supplied in a 19inch 1U rack enclosure
     P/N:  SM1-22-B-5KM-1RU
     P/N: SM1-22-B-2/1/0.5/0.2KM-1RU
Ordering Information
SM1-YY-B-ZZ-BX1 (50m-200m)      (Aluminium Box, 100(W)x140(D)x30mm(H)
SM1-YY-B-ZZ-BX2 (500m-2000m)  (Aluminium Box, 220(W)x140(D)x50mm(H)
YY: Connector type 11 - FC/UPC, 22 - FC/APC, 33 - SC/UPC, 44 - SC/APC, 66 - LC/UPC,
77 - LC/APC
ZZ: : Fiber length 50 - 50m, 100 - 100m, 200 - 200m, 1000 - 1km, 2000 - 2km,
S - Specify

SM1-YY-B-ZZKM-PSXBX   (Clear Perspex Box Enclosure)
YY: Connector type 11 - FC/UPC, 22 - FC/APC, 33 - SC/UPC, 44 - SC/APC, 66 - LC/UPC,
77 - LC/APC
ZZ: : Fiber length 10 - 10km, 20 - 20km, 30 - 30km, 40 - 40km, 50 - 50km, S - Specify

SM1-YY-B-ZKM-1RU   (1RU Rack Enclosure)
YY: Connector type 11 - FC/UPC, 22 - FC/APC, 33 - SC/UPC, 44 - SC/APC, 66 - LC/UPC,
77 - LC/APC
ZZ: : Fiber length 1 - 1km, 2 - 2km, 3 - 3km, 4 - 4km, 5 - 5km, S - Specify

SM1-YY-B-Z/Z/Z/ZKM-1RU   (1RU Rack Enclosure, Multiple Fiber Delay Lines)
YY: Connector type 11 - FC/UPC, 22 - FC/APC
Z/Z/Z/Z: : Fiber length
(Specify up to four fiber lengths)
0.05 - 50m, 0.1 - 100m, 0.2 - 200m, 0.5 - 500m, 1 - 1km, 2 - 2km,
3 - 3km, 4 - 4km, 5 - 5km, S - Specify

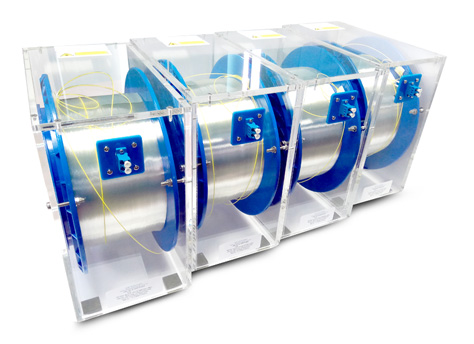

     P/N: SM4-66-B-0.2/1/2/10KM-PSXBX

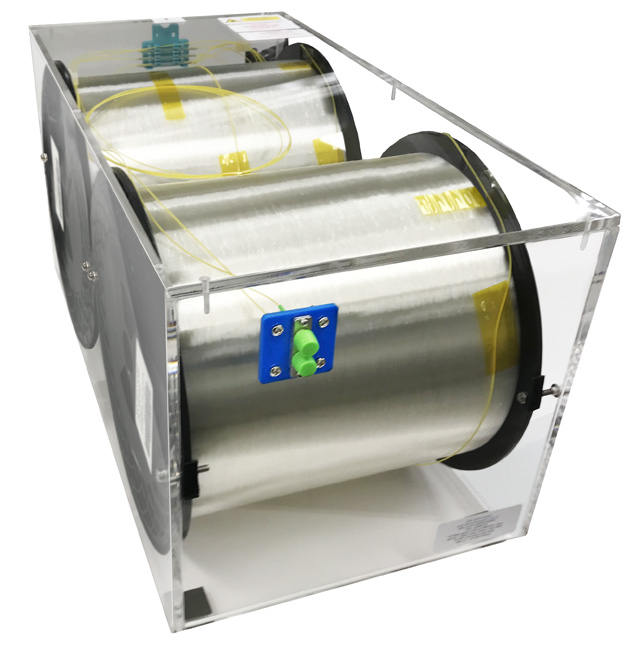

Multiple Fiber Delay Lines, G.652.D SMF fiber, Four pairs of LC-LC adapters on the front panel, one for input and one for output for each length, all fiber spools/coils fitted inside a Clear Perspex enclosure, box size 25(W)x25(D)x25cm(H)
Fiber1: 200m with LC/UPC connectors both ends
Fiber2: 1km with LC/UPC connectors both ends
Fiber3: 2km with LC/UPC connectors both ends
Fiber4: 10km with LC/UPC connectors both ends
     P/N: SM4-66-B-0.2/1/2/10KM-PSXBX
     P/N: SM1-22-B-8/4/2/1KM-1RU
Multiple Fiber Delay Lines, G.652.D SMF fiber, 8km, 4km, 2km and 1km lengths, FC/APC connectors each end, eight FC-FC adapters on the front panel, one for input and one for output for each length, supplied in a 19inch 1U rack enclosure
     P/N: SM1-22-B-8/4/2/1KM-1RU
P/N: SM1-22-B-100KM-PSXBX2
SM Fiber Delay Line, G.652.D SMF fiber, 100km,
inside a clear Perspex enclosure
SM Fiber Delay Line, G.652.D SMF fiber, 10km,
inside a clear Perspex enclosure

Multiple Fiber Delay Lines, G.652.D SMF fiber, 5km, 10km, 15km, with FC/APC adaptor on front panel
Multiple Fiber Delay Lines, G.652.D SMF fiber, 5km, 10km, 15km with LC/UPC adaptor on front panel
     P/N: SM1-22-B-5KM-PSXBX
     P/N: SM1-22-B-10KM-PSXBX
     P/N: SM1-22-B-15KM-PSXBX
     P/N: SM1-66-B-5KM-PSXBX
     P/N: SM1-66-B-10KM-PSXBX
     P/N: SM1-66-B-15KM-PSXBX

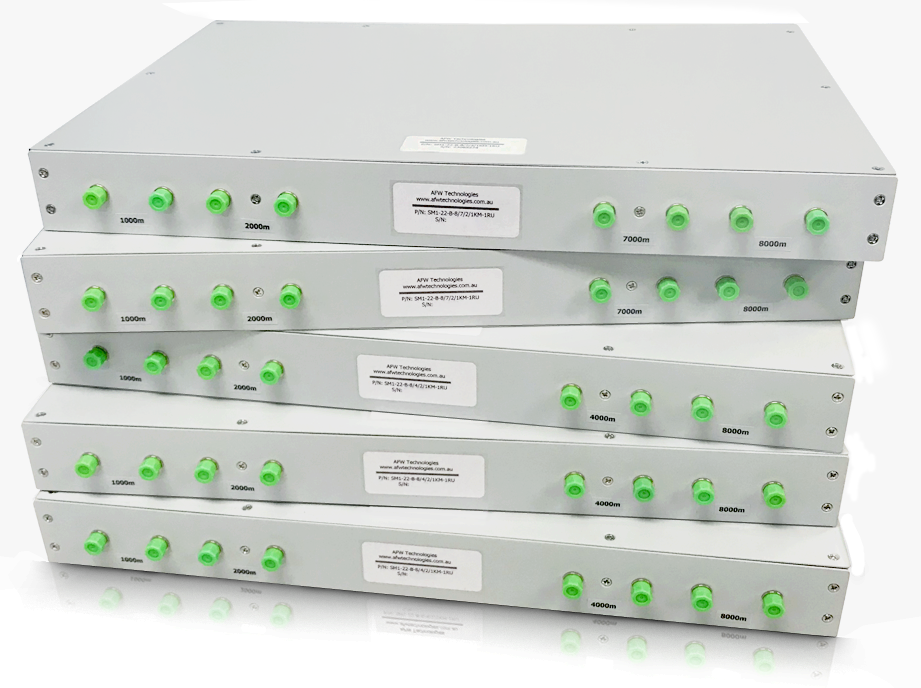

Multiple Fiber Delay Lines, G.652.D SMF fiber, 8km, 7km, 2km and 1km lengths, FC/APC connectors each end, eight FC-FC adaptors on the front panel, one for input and one for output for each length, supplied in a 19inch 1RU rack enclosure
P/N: SM1-22-B-8/7/2/1KM-1RU
P/N: SM1-22-B-10/5/2.5/1KM-1RU
Multiple Fiber Delay Lines, G.652.D SMF fiber, 10km, 5km, 2.5km and 1km lengths, FC/APC connectors each end, eight FC-FC adaptors on the front panel, one for input and one for output for each length, supplied in a 19inch 1RU rack enclosure
P/N: SM1-22-B-40KM-6RU
SM fiber spool G.652.D SMF28e+ fiber, approx.
40km long, 250um bare fiber, FC/APC connector
both ends, both fiber ends 1m length fitted with
900um tubing with connector, Fiber spool fitted
inside a 19inch 6U enclosure, dual FC-FC
adaptor front panel
Size: 38(W)x30(D)x26.6cm(H)
P/N: SM1-22-B-40KM-6RU
