| Ordering Examples | |
| Part Number | Description |
| C-PM-13-1-1-1-5-B-GL-1.5-0 |
Polarization maintaining fibre collimator, 1310nm, 1.8mm lens diameter, single fiber pigtail, metal holder, 5mm working distance, 250um bare fiber, Grin lens, 1.5m length without connectors |
| C-PM-15-1-1-2-10-L-CL-1.5-2 |
Polarization maintaining fibre collimator, 1550nm, 1.8mm lens diameter, single fiber pigtail, glass tube, 10mm working distance, 900um loose tube jacket, C lens, 1.5m length, FC/APC connectors |
| Polarization Maintaining Fiber Collimator | |
| Specifications | |
| Parameters | Values |
| Center wavelength | 1310nm , 1550nm +/-30nm |
| Insertion loss@ 5mm | <0.3dB |
| Extinction ratio | >22dB |
| Return loss | >55dB |
| Working distance | 5mm or specify |
| Fiber Type | PM Panda Fiber |
| Tensile Load | 5N |
| Operation Temperature | -5 to +70°C |
| Storage Temperature | -40 to +85°C |
| Note1:The PM fiber and the connector key are aligned to the slow axis. | |
| Note2: Values specified are without connector loss. With connector IL 0.25dB higher, RL 5dB lower and ER 2dB lower. | |
| Note3: Specifications are subject to change without notice | |
| Ordering Information | |
| C-PM-SS-Q-R-T-U-V-W-Y-Z | |
| SS: Center Wavelength | 13 - 1310nm, 15 - 1550nm |
| Q: Lens Diameter | 1 - 1.8mm |
| R: Pigtail Type | 1 - Single fiber pigtail |
| T: Packaging material | 1 - Metal holder, 2 - Glass tube |
| U: Working Distance | 5 - 5 mm, 10 - 10mm, S - Specify |
| V: Pigtail fiber size | B - 250um bare fiber, L - 900um loose tube jacket |
| W: Lens | GL - Grin lens, CL - C lens |
| Y: Pigtail length | 1.5 - 1.5m, S - Specify |
| Z: Connector | 1 - FC/UPC, 2 - FC/APC , 0 - None |

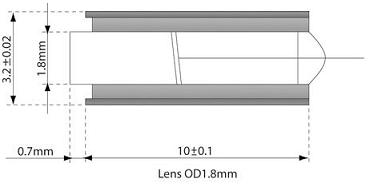

Package Dimensions
Polarization Maintaining Fiber Collimator
With connector or without connector
The PM fiber collimator is the basic element for in-line PM fiber optics components, it has high extinction ratio, low insertion and high return loss . The unique processing and high quality AR coating also enable this collimator to handle high power.
