Products
| Ordering Examples | |
| Part Number | Description |
| FOSC-2-15-50-L-1-S-1 |
Singlemode coupler, 2x2 ports, 1550nm, 50/50 ratio, 900micron jacket, SMF28e fiber, 1m fiber length, FC/UPC connector |
| SMDC-1-1315-01-B-1-S-0 |
Single Mode Dual Window Coupler, 1x2 port, 1310, 01/99 ratio, 250um bare fiber, 1m fiber length, SMF28e fiber, without connectors |
| SMDC-2-1550-05-L-1-S-2 | Single Mode Dual Window Coupler, 2x2 port, 1550, 05/95 ratio, 900micron jacket, 1m fiber length, SMF28e fiber, FC/APC connectors |
| FOSMC-1-13-33-L-1-S-2 |
Single Mode coupler, 1x3, 1310nm, 33.3/33.3 coupling ratio, 900micron jacket, 1m fiber length, SMF28e fiber, FC/APC connectors |
| FOSMC-1-15-33-C-1-S-1 |
Single Mode coupler, 1x3, 1550nm, 33.3/33.3 coupling ratio, 3mm cable jacket, 1m fiber length, SMF28e fiber, FC/UPC connectors |
| Singlemode Fiber Optic Coupler 1X2 2X2 - 1310nm or 1550nm | ||||
| Specifications | ||||
| Parameters | Values | |||
| Operating wavelength | 1310nm or 1550nm | |||
| Bandwidth | +/-20nm | |||
| Coupling ratio | 01/99 | 05/95 | 10/90 | 50/50 |
| Max. insertion loss | 21.5dB/0.2dB | 14.6dB/0.4dB | 10.8dB/0.6dB | 3.4dB |
| Max. PDL | 0.3dB/0.05dB | 0.3dB/0.05dB | 0.25dB/0.05dB | 0.05dB |
| Max. excess loss | 0.15dB | |||
| Thermal stability | < 0.002dB/°C over -5 °C to +70 °C | |||
| Directivity | For 1x2 55dB | |||
| For 2x2 65dB | ||||
| Grade | p | |||
| Configuration | 1 x 2 or 2 x 2 | |||
| Fiber type | SMF28e | |||
| 250um bare fiber and dia. 3.0 X 48mm | ||||
| Package dimensions | 900um loose tube and dia. 3.0 X 66mm | |||
| 3mm loose cable and 90 X 16 X9mm | ||||
| Operating temperature | -5°C to +70°C | |||
| Note1: Values specified are without connector loss. | ||||
Package Dimensions
| Ordering Information | |
| FOSC-R-SS-TT-U-X-Y-Z | |
| R : Port configuration | 1 - 1x2, 2 - 2x2 |
| SS: Wavelength | 13 - 1310nm, 15 - 1550nm |
| TT : Coupling ratio | 01- 01/99, 05 - 05/95, 10 - 10/90, 50 - 50/50 |
| U : Pigtail type | B - 250 um bare fiber, L - 900um loose tube, C - 3mm loose cable |
| X : Pigtail length | 1 - 1.0 m |
| Y : Fibre option | S - SMF28e |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify |
| Singlemode Dual Window Coupler/Splitter 1X2 2X2 - 1310nm or 1550nm | ||||
| Specifications | ||||
| Parameters | Values | |||
| Operating wavelength | 1310nm or 1550nm | |||
| Bandwidth | ±40nm | |||
| Coupling ratio | 1/99 | 5/95 | 10/90 | 50/50 |
| Max. insertion loss | 23.5dB/0.3dB | 15.2dB/0.4dB | 11.3dB/0.6dB | 3.6dB |
| Max. PDL | 0.15dB | |||
| Max. excess loss | 0.10dB | |||
| Thermal stability | <0.002dB/°C over -5 °C to +70 °C | |||
| Directivity | 55 dB1x2 | |||
| 65 dB2x2 | ||||
| Configuration | 1 x 2 or 2 x 2 | |||
| Grade | p | |||
| Fiber type | SMF28e | |||
| Package dimensions | 250um bare fiber and dia. 3.0 X 48mm | |||
| 900um loose tube and dia. 3.5 X 66mm | ||||
| 3mm loose cable and 90 X 16 X9mm | ||||
| Operating Temperature | -5°C to +70°C | |||
| Note1: Values specified are without connector loss. | ||||
| Ordering Information | |
| SMDC-R-SSSS-TT-U-X-Y-Z | |
| R : Port configuration | 1 - 1x2, 2 - 2x2 |
| SS: Wavelength | 1315 - 1310 & 1550nm, SSSS - Specify |
| TT : Coupling ratio | 01- 01/99, 05 - 05/95, 10 - 10/90, 50 - 50/50, SS - Specify |
| U : Pigtail type | B - 250 um bare fiber, L - 900 um loose tube, C - 3mm loose cable |
| X : Pigtail length | 1 - 1.0 m, S - Specify |
| Y : Fibre option | S - SMF28e |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify |

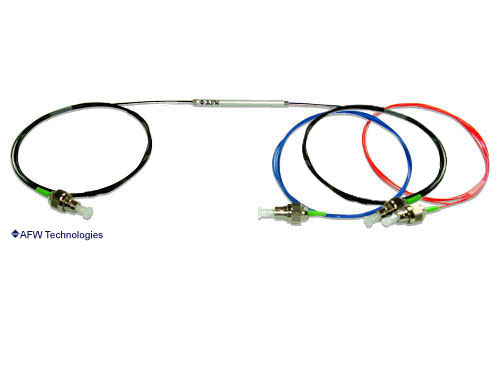

| Singlemode Coupler 1X3 - 1310nm or 1550nm | ||||
| Specifications | ||||
| Parameters | Values | |||
| Operating wavelength | 1310nm or 1550nm | |||
| Bandwidth | ±40nm | |||
| Coupling ratio | 33.3/33.3/33.4 | |||
| Insertion loss | <6dB | |||
| PDL | <0.15dB | |||
| Uniformity | <1.4dB | |||
| Directivity | >55dB, 1x3 | |||
| Fiber length | 1 meter | |||
| Fiber type | SMF28e | |||
| Package dimensions | 250um bare fiber and dia. 3.0 mm X 55mm | |||
| operating temperature | -5°C to +70°C | |||
| Note1: Values specified are without connector loss. | ||||
| Ordering Information | |
| FOSMC-R-SS-TT-U-X-Y-Z | |
| R : Port configuration | 0103 - 1x3 |
| SS: Wavelength | 13 - 1310nm, 15 - 1550nm, SS - Specify |
| TT : Coupling ratio | 33 - 33.3/33.3/33.4 |
| U : Pigtail type | B - 250 um bare fiber, L - 900micron jacket, C- 3mm cable(with module) |
| X : Pigtail length | 1 - 1.0 m, S - Specify |
| Y : Fibre option | S - SMF28e |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify |
Frequently Asked Questions
Frequently asked questions coming soon.
Frequently asked questions coming soon.
Package Dimensions
Singlemode Coupler
Singlemode coupler 1X2 2X2 offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio's from 50/50 to 1/99 are available with very tight uniformity. The singlemode standard coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Singlemode broadband coupler 1X2 and 2X2 offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity in a wide wavelength range. Singlemode broadband couplers find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Monolithic Single Mode Broadband Couplers offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio are very uniformity in a wide wavelength range. These components find extensive application to perform power splitting, combining optical signals and monitoring functions in all kinds of optical communication systems, fiber optics research and fiber sensors.
Singlemode coupler 1X2 2X2 offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio's from 50/50 to 1/99 are available with very tight uniformity. The singlemode standard coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Singlemode broadband coupler 1X2 and 2X2 offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity in a wide wavelength range. Singlemode broadband couplers find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
The Monolithic Single Mode Broadband Couplers offer very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio are very uniformity in a wide wavelength range. These components find extensive application to perform power splitting, combining optical signals and monitoring functions in all kinds of optical communication systems, fiber optics research and fiber sensors.
| Ordering Information | |
| FOSC-R-SS-TT-U-X-Y-Z | |
| R : Port configuration | 1 - 1x2, 2 - 2x2 |
| SS: Wavelength | 64 - 1064nm, 98- 980nm, 30-1030nm |
| TT : Coupling ratio | 01-1/99, 02-2/98, 05-05/95, 10-10/90, 50 - 50/50 |
| U : Pigtail type | B - 250 um bare fiber, L - 900micron jacket, C- 3mm cable(with module) |
| X : Pigtail length | 1 - 1.0 m, S - Specify |
| Y : Fibre option | H64 - Hi1060 fiber |
| Z : Connector | 1 - FC/UPC, 2 - FC/APC, 0 - None, S - Specify |
| 980nm or 1064nm or 1030nm Singlemode standard coupler- Fuse type | |||||
| Specifications | |||||
| Parameters | Values | ||||
| Operating wavelength | 980nm or 1064nm or 1030nm | ||||
| Bandwidth | +/-10nm | ||||
| Coupling ratio | 1/99 | 5/95 | 10/90 | 20/80 | 50/50 |
| Max. Insertion Loss | 21.9/0.25 | 14.5/0.5 | 11/0.7 | 7.7/1.3 | 3.5 |
| Max. PDL (tap/through port) | 0.1dB | ||||
| Wavelength Dependent Loss | 0.40/0.15 | 0.40/0.15 | 0.30/0.15 | 0.30/0.15 | 0.2 |
| Directivity | For 1x2 = 50 dB | ||||
| Directivity | For 2x2 = 60 dB | ||||
| Fiber length | 1 meter | ||||
| Fiber type | Hi 1060 fiber | ||||
| Package Dimensions | 250um bare fiber dia. 3.0mm X 40mm, 900um loose tube dia 3.0mm x 56mm, 3mm loose cable 90x16x9mm | ||||
| Operating Temperature | -5 °C to +70 °C | ||||
| Storage Temperature | -20 °C to +80 °C | ||||
| Note1: Values specified are without connector loss. | |||||
Package Dimensions
